Watts® Anti-Scale Water Treatment Systems
See Video


The problem
Calcium creates scale in pipes, on appliances and other plumbing surfaces. This leads to higher
heating and energy costs and expensive repairs to appliances, such as ice machines, coffee makers, dishwashers and cooling towers in commercial buildings.
scale buildup
Scale can also be a source for bacteria to grow, which can be a health concern in drinking water applications.

Calcium, on the other hand, is important to human health , and supplements are recommended if Calcium is reduced or totally void in one's diet.

watts water treatment tank
The solution
WATTS® Anti-Scale systems transform Calcium ions into Calcium crystals, which are stable
and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow.
scale net
Benefits
• Scale is virtually eliminated!
• Aids in removing existing scale.
• No costly repairs to appliances due to scale.
• No salt.
• No brine tank.
• No backwash.
• Saves water!
• No electricity.
• Easy installation.
Residential Models

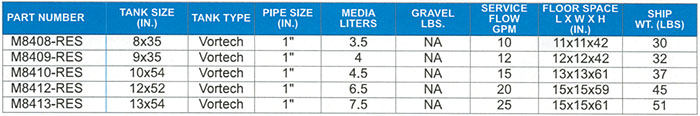

residential model chart

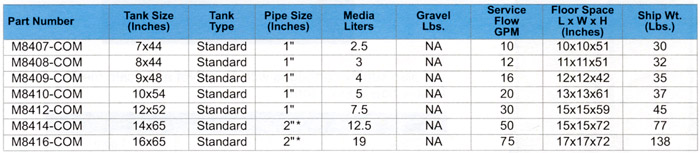

Commercial Models

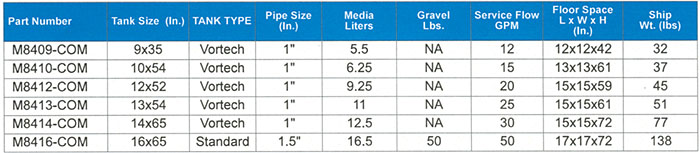

commercial model chart

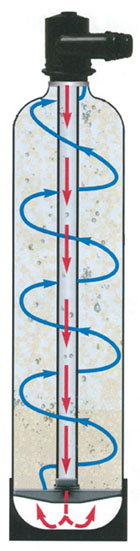

tank interiou

Proven results!

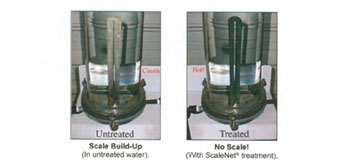

Lab tests conducted at the Watts test facility, located in San Antonio, Texas indicate ScaleNet® anti-scale media virtually eliminates new scale formation and aids in the removal of existing scale. Tests were conducted in water temperatures to 120°F and hardness levels of 17 grains per gallon. Photos (below) show scale formation in untreated water and no scale in the ScaleNet® treated water.

treated untreated

Specifications
Matrix Ceramic coated polymer.
Density 1.1 to 1.2 Ibs. per cubic foot
Weight 650 giL
Capacity 1 liter per 3.0 gallons of flow (min.)
Lifetime 3-5 years based on hardness and chlorine levels.
Temperature 40°F minimum to 140°F maximum (4°C to 60°C)
pH 6 to 9 (effective range)

vortech

Vortech® tanks
Vortech tanks are used to provide increased contact time between the ScaleNet® media and water for increased performance.

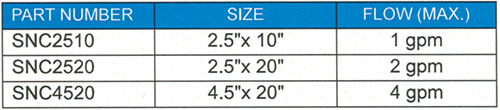

ScaleNet® cartridges
We also supply cartridges with ScaleNet® anti-scale media
for low flow applications.
scalenet
scale net cartridges
CONTACT US NOW FOR YOUR WATER PURIFICATION NEEDS
